1600x2500mm CNC Oscillating Knife Cutter

Name: 1600x2500mm CNC Oscillating Knife Cutter
Brand: DWIN
Price: 9000 USD

Brand Name : DWIN

Model Number : DW1625

Certification : CE FDA SGS

Place of Origin : China

MOQ : 1set

Price : 9000usd-12000usd

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets / month

Delivery Time : 8-10 working days

Packaging Details : Plywood box

working area : 1600*2500mm

Table : Vacuum table

Motor : Leadshine stepper motor and driver

Automatic feeding : Including

Control system : ZhongRui

Rails : Taiwan Hiwin Liner guide rails

Transmission : Taiwan Rack Transmission

Warranty : 24 months

pump : water pump 11KW

Contact Now

leather pu material automatic cutting digital cutter for making leather shoe bag

Advantages of Oscillating Knife Cutting Machine for Shoes

1, It can provide a prefect set of proofing way.
2, It can cut foot pad very quickly. Increase efficiency of producing leather, sponge, fabric, etc.
3. It can complete die cutting, indentation, moulding without knife mould, mould cutting machine.
As a result, it can save much cost of manpower, knife mould and mould machine.
4. It can replace professional handle design and shorten the reseaching time.
Besides, it can achieve a goal of more orders with a little amount, more designs.
It can provide a set of perfect plan..speciallydesigned for soft material cutting.
5. Using cnc knife cutting technology, our digital cutter machine has no burning and totally environmently.
It's equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different
requirements.
The heavy duty drag knife tool is available for special materials of the sign making industry.

1600x2500mm CNC Oscillating Knife Cutter

Technical parameter:

Technical Paramaters:
X working size	1600mm
Y working size	2500mm
Z working size	50mm, max cutting thickness of material is 50mm
Cutting head	cnc oscillating knife cutting head
Display way	English LED touch screen
Machine table	Suction Table, suitable for textile, sponge, foam, corrugated board, paper, plastic film and other soft material
Data transfer way	Intel

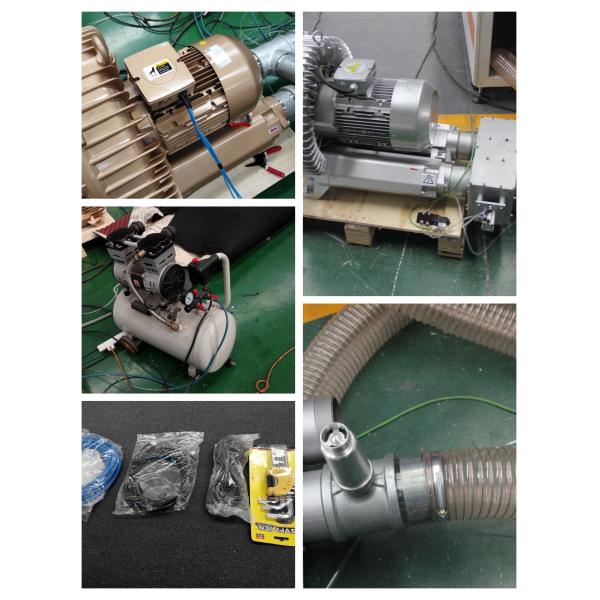

Vacuum pump	9KW air type vacuum pump
Driving system	Taiwan delta servo driver and motor
Control system	RD control system
Guiding system	Taiwan TBI square rail
Weight	About 1200kgs
Size	225033001650mm
Power	380V 50HZ

Oscillating knife cutting Machine Advantages:

 1. Stable structure: thick wall square tube welding, side plate tempering treatment, the lathe bed is processed by five side milling processing center, aging treatment, solid without deformation.

2. Ruida control system, high precision, high efficiency, high reliability, green and environmental protection automatic processing

3. Modular structure design, simple and safe operation mode, to ensure the speed and accuracy of operation.

4. Vacuum adsorption table, high-power vacuum pump, air volume up to 300m3 / h.

5. Perfect lubrication system to extend the service life of the machine.

6. The gantry type movement is adopted, and the materials on the working table can be processed at will, so the operation is convenient.

7. X / Y axis is driven by high-precision rack, with high speed and precision.

8. The z-axis is driven by high-precision double nut automatic clearance ball screw with high precision.

9. The cutting machine adopts square linear guide rail to ensure the high precision of the machine and bear large load

10. The wire adopts imported high flexible shielded cable

1600x2500mm CNC Oscillating Knife Cutter

Samples

DWIN knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard,
sticker, film, foam boardrubber, cloth,
gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA,
XPE, PVC, PP, PE, PTFE, ETFE and composites
